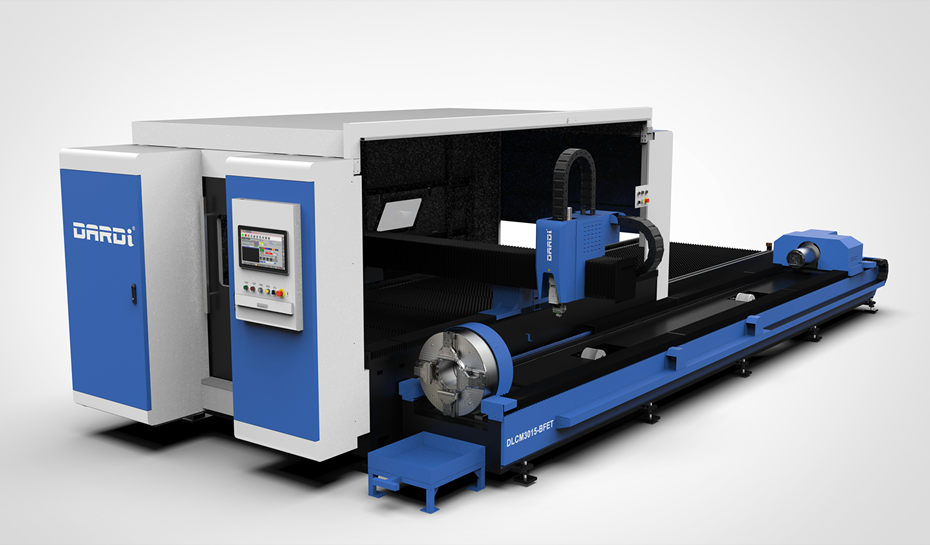

BFET series integrated laser cutting machine
Unit: SET
Size:
Price:
Applicable materials
Professional for cutting 0.5-20 mm carbon steel plate, stainless steel plate, galvanized plate, electrolytic plate, aluminum plate, copper plate, silicon steel and other metal materials. Can also process a variety of square pipe, round pipe, shaped pipe. Widely used in industry, ships, home improvement, crafts and other processing and manufacturing.
Features
Tube plate split laser processing equipment, can efficiently process metal sheet, but also flexible and convenient processing of various specifications of pipe; The degree of automation, with high speed, high precision, high cost performance, high efficiency and other characteristics; Adopt a number of imported components, durable, reliable quality; Gantry bed mechanism, simple and compact design; Wireless handle for flexible and convenient operation.
Technical Parameter
| Laser power | 1000W-6000W |
| Operating voltage | 380V/50Hz 380V/60Hz 220V/50Hz 220V/60Hz |
| Machine power | 12KW |
| Maximum operating speed | 110 m/min |
| Maximum acceleration | 0.8G |
| Machine operating temperature | 0℃~40℃ |
| Machine operating humidity | <90% no condensation |
| Transmission mode | Precision gear rack |
| Cooling method | Water Cooling |
Serices of products
| model | 3015 | 4020 | 6020 |
| Processing area (mm) | 3000*1500 | 4000*2000 | 6000*2000 |
| Z axis travel (mm) | 360 | 360 | 360 |
| Dimensions(mm) | 3510*8750 | 4020*8750 | 4020*9000 |
| Round tube diameter (mm) | 20-220 | 20-220 | 20-220 |
| Square tube side length (mm) | 20-150 | 20-150 | 20-150 |
| Pipe length (mm) | 3000/4000/6000 | 3000/4000/6000 | 3000/4000/6000 |
Automatic pipe loader
1, one-key clamping, automatic centering;
2, pipe automatic batch feeding function, maximize and reduce the feeding waiting time;
3, with automatic status recognition, detection function, greatly reduce customer downtime and maintenance time, one-click return of pipe in the station;
4, can achieve semi-automatic feeding or automatic feeding, easy and simple operation.
