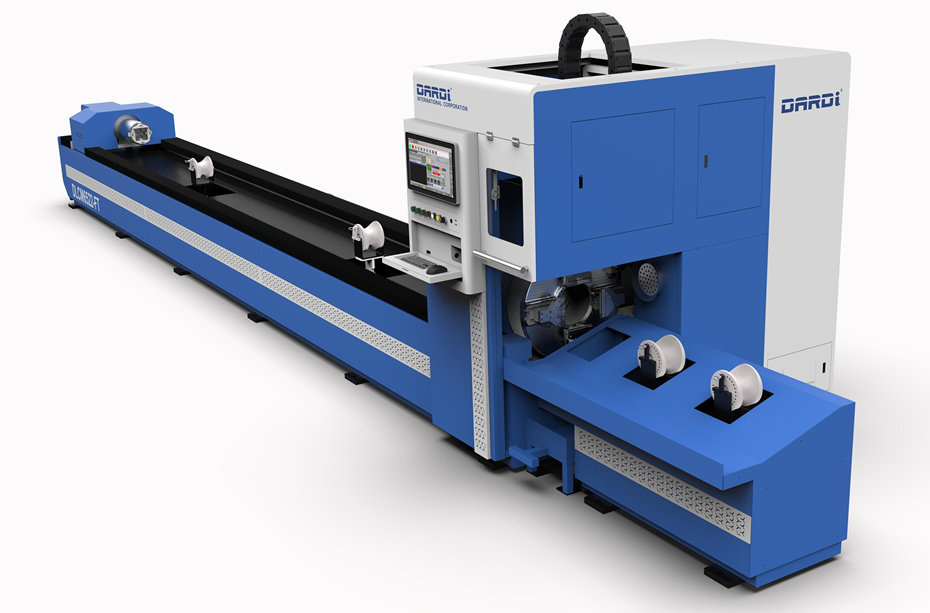

FT Series Fiber laser professional pipe cutting machine
Unit: SET
Size:
Price:
Applicable materials
Professional for cutting various kinds of pipes of different thicknesses, it is widely used in fitness equipment, oil pipelines, construction machinery, agricultural machinery, automotive industry and home decoration and other fields.
Features
1. Self-centering pneumatic chuck, with thin tube protection, to ensure that the surface clamping without damage and deformation.
2. Powerful dynamic performance, greatly improve cutting efficiency.
3. A wide range of pipe processing, can be round pipe, rectangular pipe, shaped pipe, I-beam, channel steel and other profiles for high-speed and high-quality cutting.
4. Can be equipped with automatic loading and unloading, save labor costs, improve cutting efficiency, reduce labor costs.
Technical Parameter
| Laser power | 1KW-4KW |
| Operating voltage | 380V/50Hz 380V/60Hz |
| 220V/50Hz 220V/60Hz | |
| Machine power | 9KW |
| Maximum acceleration | 0.8G |
| Machine operating temperature | 0℃~40℃ |
| Machine operating humidity | <90% no condensation |
Serices of products
| model | 6020 | 6030 |
| Pipe length (mm) | 6000 | 6000 |
| Round tube diameter (mm) | φ20-220 | φ20-350 |
| Square tube side length (mm) | □20-140 | □20-250 |
| X-axis travel (mm) | 200 | 200 |
| Y-axis travel (mm) | 6000 | 6000 |
| Z axis travel (mm) | 350 | 350 |
| X/Y/U fast moving speed (m/min) | 90 | 90 |
| A/B/C maximum speed (rpm) | 90 | 90 |
| X/Y axis positioning accuracy (mm/m) | ±0.03 | ±0.03 |
| X/Y axis repeat positioning accuracy (mm) | ±0.03 | ±0.03 |
| Feeding size (mm) | 1000-6000 | 1000-6000 |
| Cutting size (mm) | ≤2000 | ≤2000 |

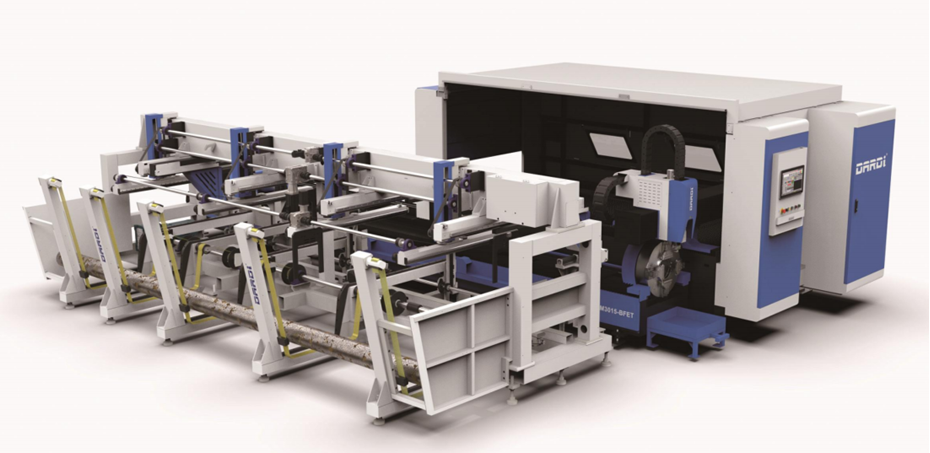

Automatic pipe loader
1, one-key clamping, automatic centering;
2, pipe automatic batch feeding function, maximize and reduce the feeding waiting time;
3, with automatic status recognition, detection function, greatly reduce customer downtime and maintenance time, one-click return of pipe in the station;
4, can achieve semi-automatic feeding or automatic feeding, easy and simple operation.
